Why Choose IT

Here are just some of the benefits of our products

Quick To Deploy

The 0.5m FloodBLOCK is designed to be quick to deploy for just one person

Cost Effective

Used around the world to protect homes and businesses from floods

Easy To Store

Stacks easily with a small footprint. 25m can be stored on a single pallet

Product Information

Overview

Our FloodBlock™ barrier provides a proven and effective flood prevention method. The barrier can be assembled to any length and be arranged to suit any direction and opening. The system can be rapidly deployed by one person. The system stacks within itself when not deployed, ensuring the absolute minimum storage.

How does it work

The FloodBlock™ flood barrier is assembled by connecting up the 1-metre long modular units using the universal key. The keys can be connected into any one of the four sides of the modular unit. This allows any barrier direction. When in use the majority of the modular units actually fill with the rising flood waters, which combined with the weighted universal keys ensures the assembled flood barrier holds back flood waters. All units and keys incorporate hard-wearing gaskets to ensure sealing.

When joining the barrier to a wall or similar a FloodBlock wall connector is used.

Anti vandalism bracket can be incorporated to prevent the flood barrier from being disbanded by unwanted hands when deployed.

In the above set up a free board is required.

Click on the headings below for further product information.

Applications and Benefits

Uses include

  • Household flood protection:
    • Doorways
    • Driveway
    • Garage door protection
  • Businesses flood protection:
    • Doorways
    • Driveway
    • Perimeter
    • Roller shutter door protection
  • Local Authority, Commercial & Utility Flood Protection
  • Spillage Protection:
    • Fluid containment
    • Tertiary containment for spillage risk
    • Slurry containment

Can be deployed in an emergency or in a semi-permanent or permanent scenario.

Key Benefits of Floodstop flood defence barriers

Flood insurance is becoming increasingly difficult to obtain, and most home and business owners are aware that they must take responsibility in protecting their properties from the risk of flooding with flood defence barriers. Benefits of FloodBlock™ include:

  • Rapidly deployable flood defence system
  • Can be assembled by one person
  • Small footprint
  • Not affected by strong winds when deployed
  • Highly flexible system
  • More cost effective and versatile flood protection than sandbags
  • Self-balancing with no bolting required
  • FloodBlock wall connector allows easy connection to walls
  • Units stack within itself for easy storage
  • Recyclable and reusable.
  • Can be used as leverage to gain flood insurance
Assembly Instructions

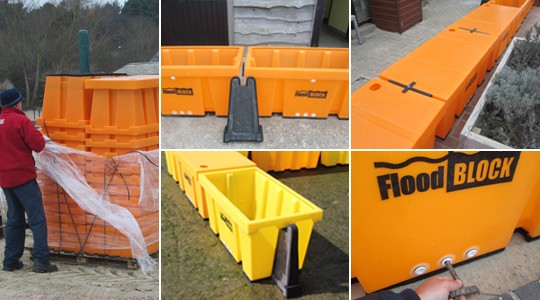

FloodBlock™ barrier assembly

Floodblock Assembly

FloodBlock™ barrier assembly

  • Inspect ground conditions and clear any debris
  • Position the FloodBlock™ Modular Units out into required barrier length and direction
  • Insert connection keys and fix anti-vandal brackets
  • Pre-fill a minimum of every 3rd modular unit (with water ballast) along the assembled flood barrier. The remaining units will automatically fill with the rising flood waters (remove the front face bungs for this)

Connecting the barrier to a wall:

  • Insert a FloodBlock™ Wall Connector between a modular unit and a wall to create a connection

0.5m high Floodstop Component Details

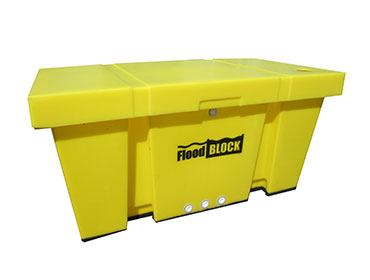

0.5m high FloodBlock™ Modular Unit

  • 1-metre long self-filling or pre-filled flood barrier units
  • Standard modular unit dimensions: 1000 (L) x 500 (H) x 500mm (D)
  • Modular Unit Weight: 13kg
  • Any colour can be requested. The colour orange is standard

£165 + VAT
Price Includes universal key

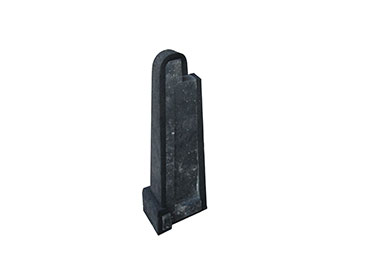

FloodBlock™ Wall Connector

  • Interlocking key that allows connection to a wall or similar in-situ object.
  • FloodBlock™ Wall Connector Weight: 5kg

£25 + VAT

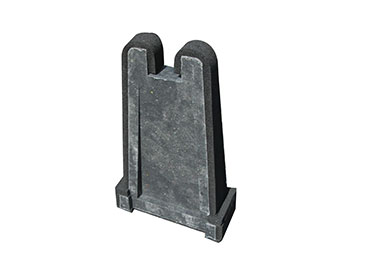

FloodBlock™ Universal Key

  • Interlocking key that creates a seal and applies ballast between the FloodBlock™ modular units
  • The Key can be connected into any of the four sides of the unit. This allows any angle to be met
  • FloodBlock™ Key Weight: 10kg

Key Benefits

Flood insurance is becoming increasingly difficult to obtain, and most home and business owners are aware that they must take responsibility in protecting their properties from the risk of flooding with flood defence barriers. Benefits of FloodBlock™ include:

  • Rapidly deployable flood defence system
  • Can be assembled by one person
  • Not affected by strong winds when deployed
  • Highly flexible system
  • More cost effective and versatile flood protection than sandbags
  • Self-balancing with no bolting required
  • Multi-hub connection unit allows easy connection to walls and cornering
  • Units nest into each other for easy storage
  • Recyclable and reusable.
  • Can be used as leverage to gain flood insurance

Suitable terrain

  • Typical hard standings such as roads, pavements, pathways etc.
  • Grass or soil, depending on undulations.
  • Not recommended for use on gravel.

Get a Quote & Free Deployment Plan

To get a quotation and deployment plan showing how Floodstop would be arranged at your location please contact us with the measurement(s) of the opening, delivery postcode and any photos you may have to hand.

Get a Quote & Free Deployment Plan

To get a quotation and deployment plan showing how Floodstop would be arranged at your location please contact us with the measurement(s) of the opening, delivery postcode and any photos you may have to hand.
